Spare Parts


With the demise of the companies that manufactured BARIENT & BARLOW winches, almost every customer who ever purchased those winches has experienced some frustrations in trying to keep the winches serviceable. Unfortunately, no provisions were made to ensure supply of even the most basic of spare parts for BARIENT & BARLOW equipment.

But there is hope. The AUSTRALIAN YACHT WINCH COMPANY can help.

We have purchased a large quantity of the original Barient and Barlow tooling and all the technical data covering the entire period of their existence. Additionally, our intimate knowledge of Barient and Barlow products ensures delivery of the correct spare parts at minimum fuss.

Spare Parts Price List (in US Dollars) effective from October 1st, 2010:


#301901A
'Delrin' Bearing for Aluminium Drums
2 5/8"I/D
$55.00
#301901S
Bearing, St/Stl rollers
2 5/8"I/D
$66.00
#01-011
'Black' Bearing, St/Stl rollers
1 7/8"I/D
$40.00
#01-021
'Delrin' Bearing for Aluminium Drums
1 7/8"I/D
$38.00
#00414
'Half' Bearing, bronze cage
1 7/8"I/D
$80.00
#01-015
'White' Bearing, St/Stl rollers
1 5/8"I/D
$34.00
#01-015A
'Delrin' Bearing for Aluminium Drums
1 5/8"I/D
$31.00
#01-014
to suit Barient part #00404
'Grey' Bearing
1 1/8"I/D
$25.00
#01-012
to suit Barient part #00403,
'Gold' Bearing
1"I/D
$23.00
#00426
Bearing, bronze cage
3/4"I/D
Not Available
#01-010 [#01-013]
to suit Barient part #00401
'Green' Bearing
9/16"I/D
$21.00

#19-031

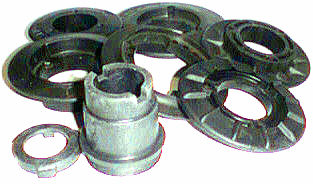

Set of Self-tailing Jaws (Top & Bottom)
for Barlow & Barient winches #19ST to #25ST
$85.00
#27-231
Set of Self-tailing Jaws (Top & Bottom)
for Barlow & Barient #27 Self-tailing winches
$92.00
#301301M
Set of Self-tailing Jaws (Top & Bottom)
for Barlow & Barient #21-30 & #21-35 Self-tailing winches
$85.00
#401301M
Set of Self-tailing Jaws (Top & Bottom)
for Barlow & Barient #22-40 & #24-45 Self-tailing winches
$92.00
#301102M
Self-tailing Gearbox Extension
for Barlow & Barient #21-30 to #24-45 Self-tailing winches
$70.00
#301501M
Line Stripper
for Barlow & Barient #21-30 & #21-33 Self-tailing winches
$38.00
#401501M
Line Stripper
for Barlow & Barient #22-35 to #24-45 Self-tailing winches
$40.00
#302501M
Set of 2 Line Lifter Keys
for Barlow & Barient #21-30 to #24-45 Self-tailing winches
$72.00

#01-400
Set of 4 x Ratchet Pawls plus 8 x Springs
to suit almost all Barlow and Barient winches
$38.00
#19-613
Rope Guide or Line Lifter
to suit Barlow & Barient winches #19ST to #25ST
$220.00
#27-613
Rope Guide or Line Lifter
to suit Barlow & Barient winches #27ST
$240.00
#401602C
Line Lifter
to suit Barient winches #22-39ST to #24-45ST
$175.00
#24-009
Retaining Nut
1 5/8-UNC
for some Barlow Self-tailing winches manufactured prior 1978
$100.00
#24-209
Retaining Nut
1 7/8-UNC
for Barlow & Barient Self-tailing winches #17ST to #36ST
$100.00
#24-206S
Mainshaft Top
for use with #24-009 (Retaining Nut)
$105.00
#24-206L
Mainshaft Top
for use with #24-209 (Retaining Nut)
$105.00

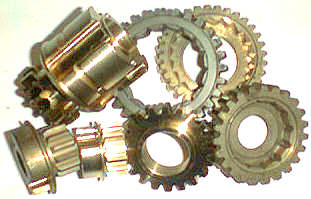

We will quote on all other components (inclding Gears, Gear Shafts, Mainshafts, etc.) on request.

Components will normally be manufactured to their original specifications. However, our intimate knowledge of the products makes it possible for us to upgrade poorly designed original components.

Over the years Barlow and Barient winches have been subjected to a substantial number of design changes. Often those changes have not been documented in detail, sometimes not at all. Because of this, it is often difficult to determine the correct spare parts. You can help to avoid frustrations and unnecessary delays by supplying as much information and description of the parts as possible.

It is most important that you supply the following details:

IMPORTANT NOTICE regarding the delivery of Spare Parts for BARIENT and BARLOW winches:
Unfortunately the production schedule of our proprietary products can not be interrupted for the manufacture of Spare Parts for products of past and present competitors. While we make every attempt to ship within the quoted delivery times, some shipping delays may be unavoidable.

If you have any questions, and for prompt and personal attention, please don't hesitate to send us an email.
