New to the range of HUTTON products
HUTTON Roller Furling / Reefing Systems

Since the successful and very well received introduction of our BIG GEAR 6000 manual and hydraulic Roller Furling / Reefing system, we have now extended the range of HUTTON Roller Furling / Reefing systems to cater for boats from 30 to 110 feet.

For the first time ever there is now a comprehensive line of high quality Australian manufactured Roller Furling / Reefing systems, and they are available at very competitive prices.

HUTTON Furlers also include features which are not available from many of the expensive imported systems.

Name	Operation	Boat Size	Forestay Wire Size	System Length	Foil Extrusion (diameter)
HUTTON #3200	Manual or Hydraulic	30 to 42 feet	From 6mm (1/4") to 10mm (3/8")	18 meters	32mm
HUTTON #4800	Manual or Hydraulic	40 to 60 feet	From 10mm (3/8") to 16mm (5/8")	24 meters	48mm
HUTTON #6000	Manual or Hydraulic	55 to 110 feet	From 16mm (5/8") to 25.4mm (1")	28 meters	60mm

All furling system lengths are are increasable in sections of 2 metres

General features of all HUTTON Furlers:

Aluminium Top Cap: Prevents the halyard swivel from being accidentally over-hoisted.
Precision Drilled Torque Links: CNC machined Links for perfect alignment.
'TORLON' Bearings: 'Torlon' Ball Bearings fitted in both the Drum and the Top Swivel for high strength and efficiency - no lubrication required.
Riveted Assembly: Reliable riveted Foil Assembly requires no drilling. Will not freeze, strip or back out. Can be easily removed or repaired.
Twin 'Aft Facing' Sail Grooves: Two aft facing sail grooves allow furling system to carry two sails at any one time or enable quick sail changes during a race.
Full Headstay Adjustment: Use of existing Headstay and Turnbuckle reduces expense and installation time, while allowing full adjustment without increasing the Drum height.
Anodised & Heli-coiled: All aluminium components are anodised and fitted with Heli-coils for years of trouble free sailing.
Heavy Duty Base Toggle/Link: Over specified to handle any side loading forces.

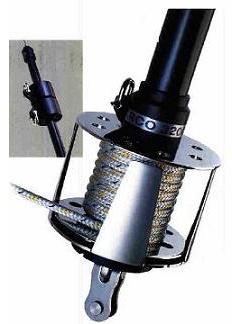

Features of HUTTON Manual Furlers:

Removable Split Drum: Allows easy removal for racing.
Large Drum Diameter: Provides greater mechanical advantage.
Open Drum Design: Allows for easy inspection and access to furling control lines.
Stainless Steel Cage: Prevents damage to the Drum from strikes by bow mounted anchors.
